AY1260 USB4 Dual Type-C Multifunctional Expansion Dock
DP 1.2 To HDMI Adapter

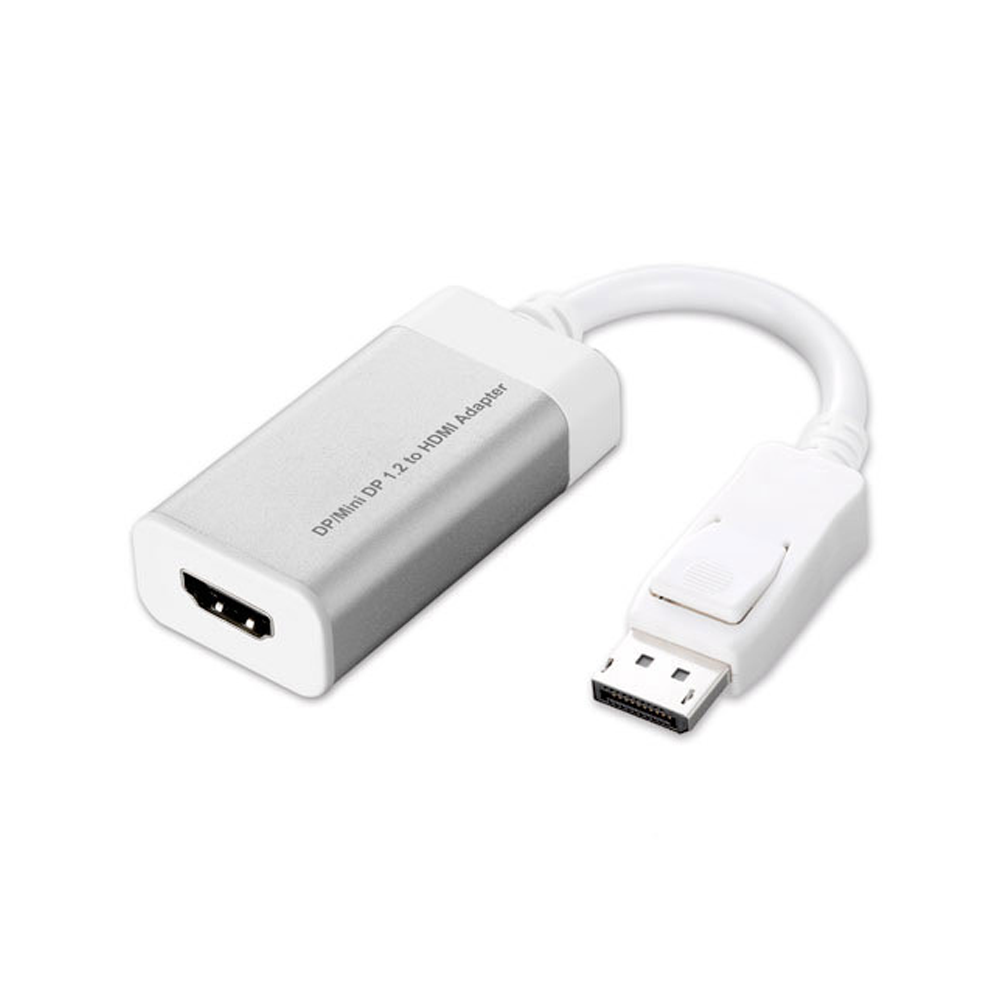

The DisplayPort/Mini DisplayPort to HDMI Adapter is designed for connecting a DisplayPort embedded device (laptop, desktop and etc.) to a HDMI embedded device (television, monitor and etc.). With the HDMI and DisplayPort 1.2a specifications, this adapter’
Product Introduction
USB4 High-Speed Transmission: Supports USB4 technology with transfer rates up to 40Gbps, ensuring fast data transfer and high-definition video output.
Dual 4K Video Output: Supports dual HDMI (4K 60Hz) display output, allowing simultaneous connection to two monitors for a smooth and clear multi-screen work experience.
Multifunctional Ports: Equipped with multiple USB-C, USB-A, RJ45 Ethernet ports, and SD/TF card slots, meeting various peripheral connectivity needs and enhancing device compatibility and work efficiency.
PD Fast Charging: Supports 100W PD charging, providing stable power supply for laptops and other devices, extending device battery life.
Ethernet Connection: Built-in Gigabit Ethernet port ensures fast and stable wired network connection, enabling efficient network transmission.
Portable Design: Compact and lightweight design makes it easy to carry, perfect for mobile office setups or business trips, greatly improving work convenience.
The AY1260, with its high-speed transmission, powerful expansion capabilities, and efficient multi-screen display support, becomes a reliable tool to boost productivity in your work.
Product parameters
| Parameter | specifications |
|---|---|
| Video Input | DP/Mini DP |
| Video Output | HDMI (Female) |
| Max Resolution | 3840 x 2160@30 |
| Power Mode | Bus-powered (3.3V) |
| Power Consumption | Maximum (4K Mode): 782mW Standby Mode: < 400mW |
| Housing | Alumimum + Plastic (PC+ABS) |
| Dimension ( L x W x H ) | 53 x 27 x 15 mm |
| Weight | 58.7g |
| Working Environment | Operation Temperature: 10~40°C Storage Temperature: -20~70°C |
| Compliance | CE, FCC |
