DUD3950 USB-C 5×4K Display Docking Station
The DUD3950 delivers outstanding content extension performance to an impressive five displays, supporting up to 4K60Hz via its two DP and three HDMI video ports, significantly enhancing productivity and convenience with versatile video connectors. With po
Product Introduction

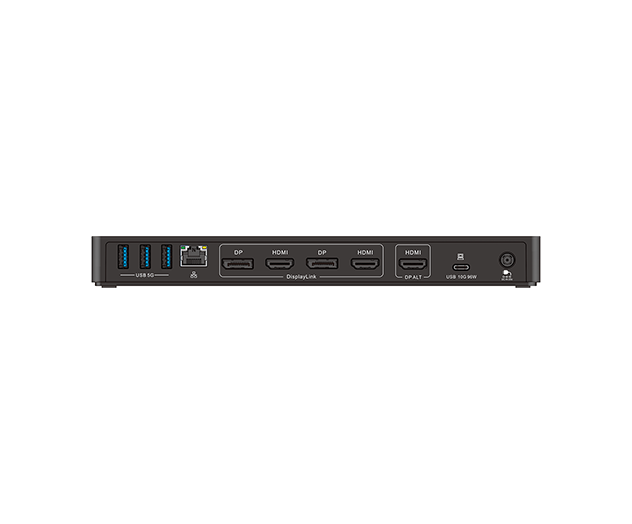

2×DP and 3×HDMI ports extend five displays at 4K60Hz resolution.
USB-C UFP delivers 96W for laptop power without a laptop power brick.
Robust extension with abundant USB DFP: 4×USB-A 5G ports and 2×USB-C 10G ports (one with PD30W) for USB accessory connections.
Integrated Ethernet 2.5GbE RJ45 connector and audio jack for more applications.
The flat, horizontal design streamlines your workspace and enhances cable management.
Product parameters
| Parameter | specifications |
|---|---|
| Model | DUD3950 |
| Description | USB-C 5×4K Display Docking Station |
| Maximum Display | 5× 4K60Hz |
| Legacy Display | 2× DP 3× HDMI |
| USB-C Upstream | 1× USB-C 10G |
| USB Downstream | 4× USB-A 5G 1× USB-C 10G 1x USB-C 10G (PD30W) |
| LAN | 1× RJ45 (2.5GbE) |
| Audio Jack | 1× 3.5mm TRRS |
| PD | PD96W |
| Power Supply | DC 135W |
