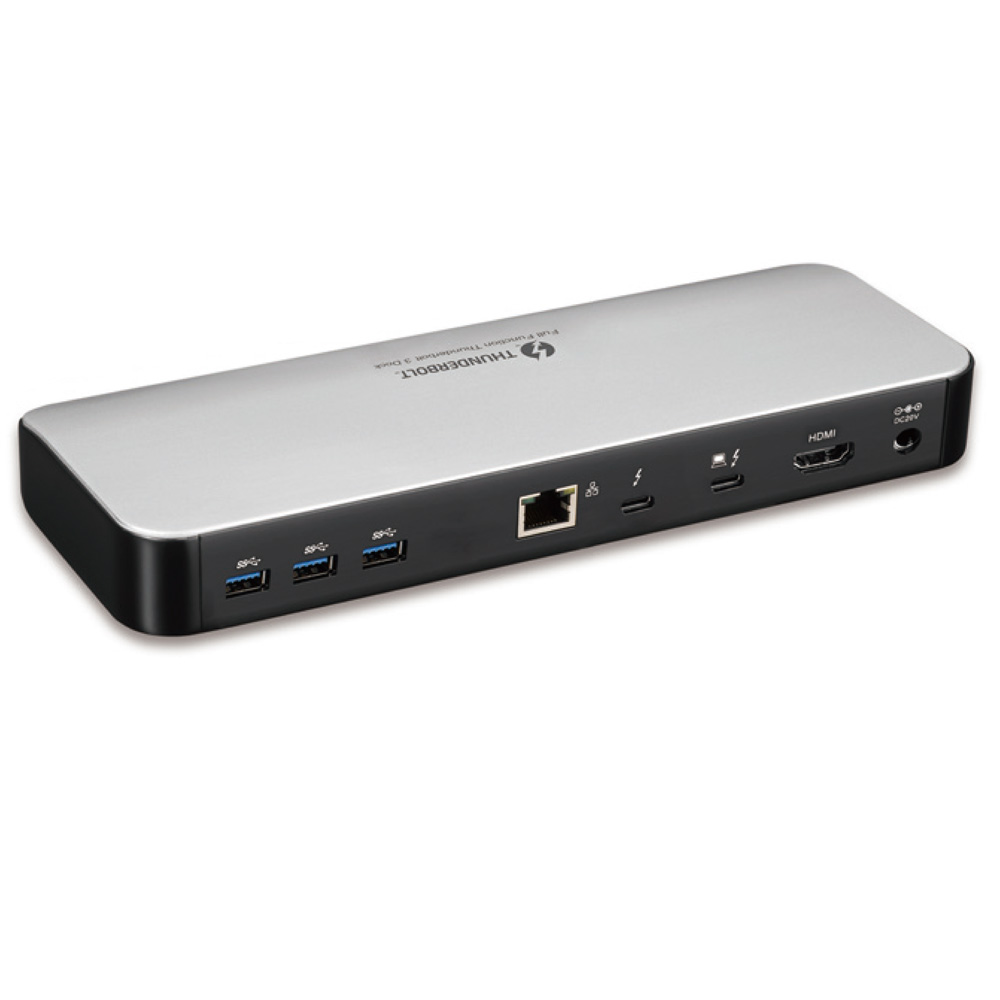

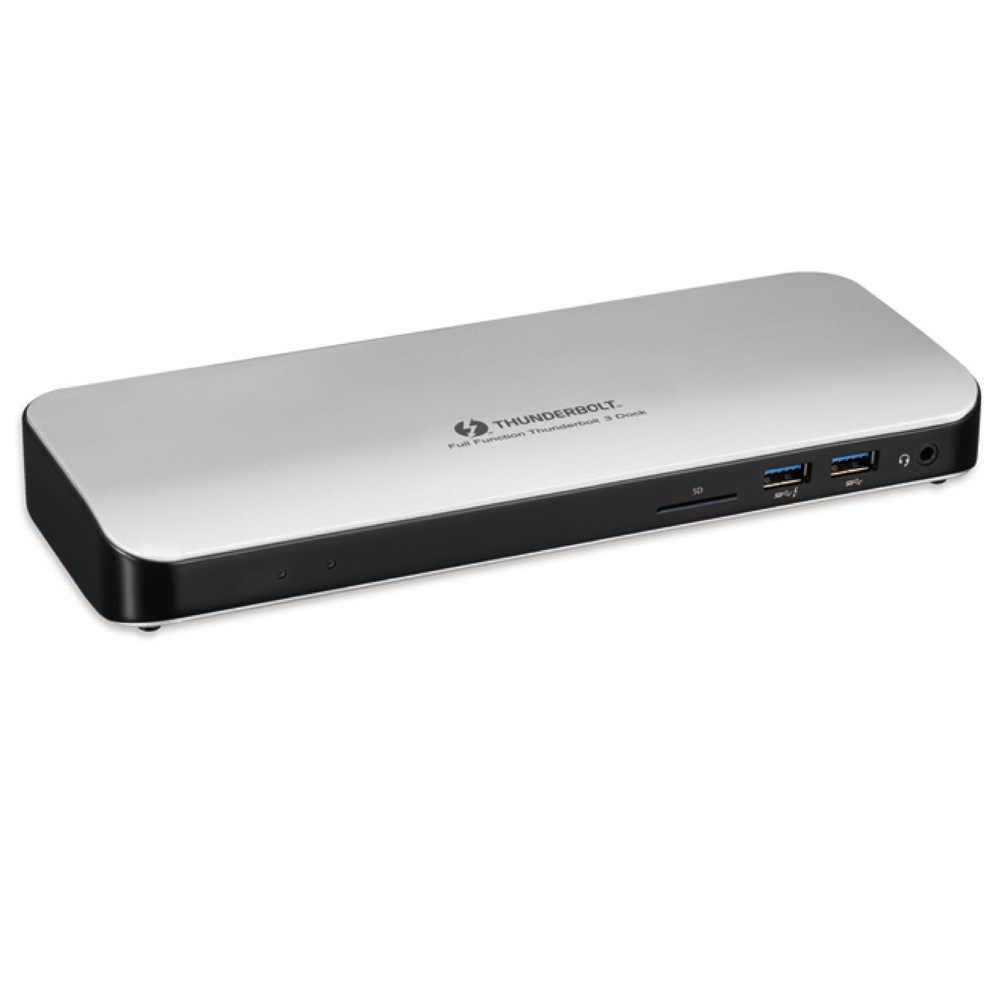

DBB1230 USB-C Docking Station with Dual 4K Display and Power Delivery
Thunderbolt™ 3 PD Dock
The Thunderbolt 3 PD Dock is designed for extra connectivity demands. With this docking station, you can extend the connection of a computer to more USB peripherals such as Ethernet network, the speaker and the microphone. Adopting PD Charging technology,
Product Introduction
Dual 4K Display Support: Enables connection to two 4K monitors, expanding screen space for enhanced multitasking and productivity.
100W Power Delivery: Provides robust charging for laptops and connected devices, ensuring consistent power during use.
Comprehensive Connectivity Options: Includes USB-A, USB-C, HDMI, Ethernet, and audio ports to meet a wide range of connectivity needs.
High-Speed Data Transfer: Supports transfer speeds up to 10Gbps, ideal for efficient handling of large files and quick data access.
Compact and Professional Design: Designed to seamlessly fit into any workspace, offering functionality with a sleek, space-saving appearance.
Product parameters
| Parameter | specifications |
|---|---|
| USB Upstream | 2x Type-C Thunderbolt 3 (only one port supports PD charging) |
| USB Downstream | 5x USB 3.0 connector, one port supports BC 1.2 |
| Legacy Video Port | 1x HDMI |
| Max Resolution | 4K60 |
| Audio | 1x Combo Audio Jack (IN/OUT) 2.1 CH |
| LAN | 1x RJ45 (10/100/1000 BASE-T) |
| SD Card Reader | 1× SD3.0 |
| Power Mode | Self-powered |
| PD | PD60W |
| Power Adapter | Input: AC 100-240V Output: DC 20V/6.75A |
| Working Environment | Operation Temperature: 0~40°C Storage Temperature: -20~70°C |
| Compliance | CE, FCC |
