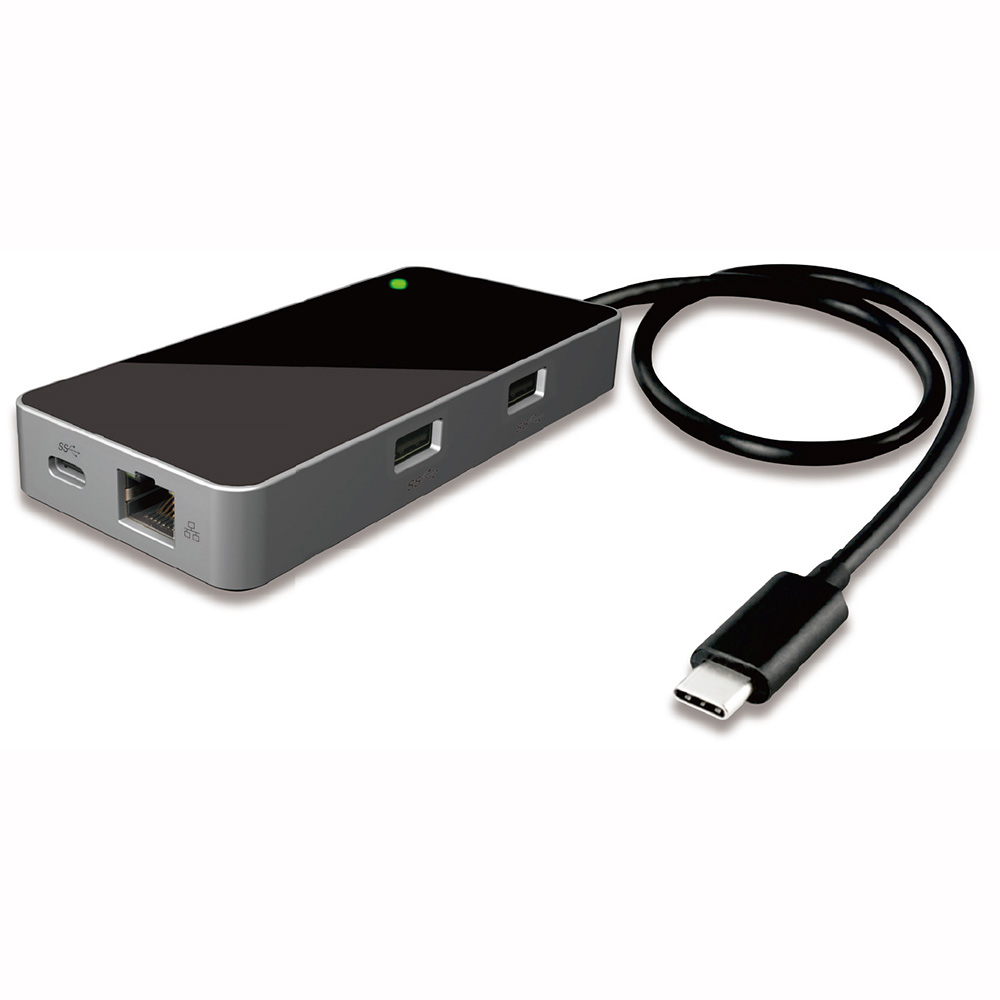

VSD53B0 USB-C Portable Docking Station with HDMI and Power Delivery

USB-C 8-In-1 Mini Dock

The VSD53B0 is a portable design between the office and home. A mobile office can be set up in seconds with a single USB-C connection. It supports the multi-video output (VGA/DP/HDMI) and also has an Ethernet LAN port. In addition, the VSD53B0 mini dock h

Product Introduction

  • Multi-Port Expansion: Provides various ports, including HDMI, USB-A, USB-C, Ethernet, and SD card reader, for versatile connectivity.

  • 4K HDMI Output: Supports 4K resolution via HDMI, delivering high-definition visuals on external displays.

  • Power Delivery Support: Offers up to 100W USB-C Power Delivery, allowing device charging while using the dock.

  • Fast Data Transfer: SuperSpeed USB 3.0 ports for efficient file transfers at speeds up to 5Gbps.

  • Compact and Portable: Lightweight and travel-friendly, ideal for creating a mobile workstation.


Product parameters

Parameter specifications
USB Upstream USB-C PD 3.0 pass through up to 100W
USB Downstream 2x USB-A 3.1 1x USB-C 3.1 1x USB-C, PD Power in only
Legacy Video Port 1x HDMI 1x DP 1x VGA
Max Resolution 1x 4K30 (HDMI/DP) 1x 2K60 (VGA)
LAN 1x RJ45 (10/100/1000Mbps)
Power Mode Bus-powered Self-powered
PD PD100W
Tethered Cable 300mm
Working Environment Operation Temperature: 0~40°C Storage Temperature: -20~70°C
Compliance CE, FCC
